MS-100HD

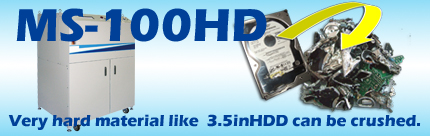

Different from ordinary shredding methods, "Crush-cut (patented in U.S.)" method was applied, so MS-100HD can crush very hard materials like 3.5"Hard Disk Drives.

USA patent

Structure

Crush cut

Different from ordinary shredding methods, "Crush-cut (patented in U.S.)" method was applied.

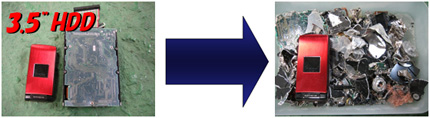

This method is the same as the method of making sand (crushing stones), so MS-100HD can crush hard materials like 3.5"Hard Disk Drives.

MS-100HD is equipped with "SWING TYPE HAMMER". In case overload putting to hammer this swing mechanism is useful to escape.

Features

Safety Functions

MASTER KEY

MS-100HD can not be operated without master key. So only authorized operator who has master key can work with MS-100HD.

CIRCUIT BREAKER

Power is automatically OFF when the over current circumstance is continued more than the limit for electric circuit and/or motor.

EMERGENCY STOP SWITCH

Emergency Stop Switch is located beside input slot. For safety reason its switch is large size for easy pushing.

OVER LOAD AUTO STOP

In case detector received information of over current for certain period MS-100HD will stop automatically.

LIMIT SWITCHES

All doors have limit switches. When the doors was opened during a process, operation is stopped automatically, however, improper opening of the door is prevented by the key lock.

Easy Operation

After push ON switch, and materials to be disposed are simply inserted in a slot on top of MS-100HD.

When disposal container becomes full of disposed pieces, operation is stopped automatically.

Balance of Security and Recycling

Our Security Crushers are wide-range from physical destruction for purposes of security to crush for recycling purposes.
E-scrap Recycling

Useful for crushing hard materials including metal

The root of our Security Crushers came from the rock crusher.
So our Security Crushers can crush hard materials including metal and various electronic devices.

*Difference from ordinary shredding methods, "Crush-cut (patented in U.S.)" method was applied.

You can change size of waste material

Size of waste material can be controled by size of exit screen hole (Materials should be crushed in crusing chamber until getting smaller size than hole of exit screen). Therefore small materials like Flash Memory and IC tip can be crushed.
Size of exit screen hole is choosed by user, it is wide-range from physical destruction for purposes of security to crush for recycling purposes.
You can change size of waste material

Crush & Separation at same process

Crushed Scrap by our Security Crushers is going to be separated Metal tip, Plastic, PC board etc naturally. So after the crushing it will be getting more easy to separate by magnet, by hand for material recycling.
We have developed own unique hammer crusher mechanism which will make Crush & Mixing for natural separation at same time. Also our Security Crushers are using exit screen which is useful to separate material with difference of durability and character. (This technology has been approved by Recycling org. of natural resource.)
Crush & Separation at same process

Specification

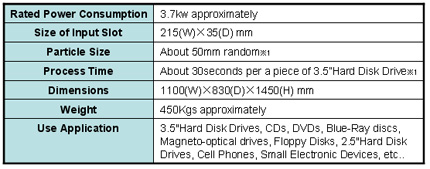

MS-100HD Specification
*1 Varied by a commodity being processed and size of exit screen hole.
*2 Specifications and appearance are subject to change without prior notice.
